Dynapac CC4200 VI

prix sur demande

DÉTAILS

TECHNICAL DATA+

Masses
Max. operating mass 13150 kg
Operating mass (incl. ROPS) 10000 kg
Module mass (front/rear) 5000 kg/ 5000 kg
Traction
Speed range 0-12 km/h
Vertical oscillation ±7°
Max. theoretical gradeability 40 %
Engine / Drive
Manufacturer/Model Cummins F3.8 V
Type Water cooled turbo diesel
Rated power, SAE J1995 100 kW (135 hp ) @ 2200 rpm
Fuel tank capacity 180 l
DEF tank capacity 15 l
Alternative Engine
Manufacturer/Model Cummins QSF 3.8 IV/T4f
Type Water cooled turbo diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2200 rpm
Alternative Engine
Manufacturer/Model Cummins QSF 3.8 IIIA/T3
Type Water cooled turbo diesel
Rated power, SAE J1995 104 kW (140 hp ) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacem. Rad. piston motors(2) with variable displacem.
Vibration Axial piston pumps(2) with variable displacem. Axial piston motors(2) with const. displacem.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/ Emergency brake Failsafe multidisc brake in both drums.
Compaction CE
Centrifugal force (high/low amplitude) 113 kN/69 kN
Vibration frequency (high/low amplitude) 48 Hz/61 Hz
Compaction – Oscillation
Oscillation frequency Hz

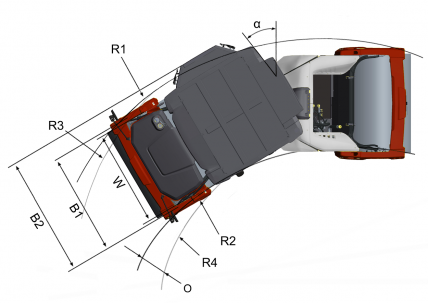

A. Wheelbase 3760 mm
B1. Width, front 1910 mm
B2. Width, with cab 2140 mm
C. Curb clearance 815 mm
D. Drum diameter 1300 mm
H. Height, with ROPS/cab 2990 mm
K. Ground clearance 310 mm
L. Length 5060 mm
O. Off-set 520 mm
R1. Turning radius, outside 7270 mm
R2. Turning radius, inside 5590 mm
R3. Turning radius with off-set, outside 5460 mm
R4. Turning radius with off-set, inside 3780 mm
S. Drum shell thickness 20 mm
W. Drum width 1680 mm
α. Steering angle ±32°
Operating Mass: 10000 kg
SLL (front/rear): 29.8 kg/cm / 29.8 kg/cm
Compaction width: 1680 mm
